100 M Plasma Cutting Machine

Name: 100 M Plasma Cutting Machine
Brand: Matahari Services
Price: 22000.0 INR
Availability: InStock

22000.0 INR/Unit

Get a Price/Quote

Product Details:

Pulse Frequency High Frequency
Function Plasma Cutting
Weight 65 kg
Frequency 50/60 Hz
Dimension (L*W*H) 600 mm x 320 mm x 480 mm
Welding Area 100 mm cutting capacity
Arc Current 100 A
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

100 M Plasma Cutting Machine Price And Quantity

Price 22000.0 INR/Unit
Minimum Order Quantity 1 Unit

100 M Plasma Cutting Machine Product Specifications

Function Plasma Cutting
Voltage 380 V
Cooling Method Air Cooled
Pulse Frequency High Frequency
Power 12 kW
Rod Diameter Up to 3 mm (for pilot arc)
Motor Type AC Motor
Usage Industrial Metal Cutting
Weight 65 kg
Frequency 50/60 Hz
Material Steel/Aluminium
Insulation Grade F
Dimension (L*W*H) 600 mm x 320 mm x 480 mm
Welding Area 100 mm cutting capacity
Efficiency 85%
Condition New
Type 100 M Plasma Cutting Machine
Input Current 20 A
Output Current 30-100 A adjustable
Arc Current 100 A

Cutting Speed 1500 mm/min
Operating Temperature -10C to +40C
Gas Supply Compressed Air
Control Mode Manual/Automatic options
Display Type Digital Meter Display
Duty Cycle 60% at 100 A
No Load Voltage 260 V
Torch Length 6 m
Accessories Included Torch, Earth Clamp, Regulator
Noise Level < 70 dB
Ignition Mode Contact/Non-Contact
Protection Class IP21S

100 M Plasma Cutting Machine Trade Information

FOB Port Coimbatore
Supply Ability 15 Unit Per Month
Delivery Time 1 Days
Sample Available No

Product Description

Parameter	Typical Value

Input Voltage

380V415V, 3-Phase

Rated Input Power

3045 kVA

Output Current

30200 A

No-load Voltage

280320 V

Duty Cycle

60100% (model dependent)

Cutting Thickness

Up to 5070 mm carbon steel

Piercing Thickness

2540 mm

Cooling Method

Forced Air

Arc Start

Pilot Arc / HF Start

Air Pressure

0.40.6 MPa

Protection Class

IP21S or similar

Versatile Performance for Industrial Applications

The 100 M Plasma Cutting Machine is engineered for industrial metal cutting, delivering precise performance on steel and aluminium. With its robust 100 mm cutting capacity and adjustable output current (30-100 A), it adapts to various project requirements. The high-frequency arc ensures stable operation while the air-cooled system maintains efficiency during extended tasks.

User-Friendly Features for Enhanced Productivity

This plasma cutter is designed with both manual and automatic control options, giving users flexibility to switch between modes as needed. The digital meter display provides instant feedback and simplifies monitoring of cutting parameters. Accessories like the torch, earth clamp, and regulator are included, supporting a swift setup and seamless operations.

Reliable and Safe Operation

Safety and reliability are at the core, thanks to features like IP21S protection class and insulation grade F. The low noise operation (<70 dB) ensures a quieter work environment, while the wide operating temperature range (-10C to +40C) suits various industrial settings across India. The sturdy build supports sustained use and consistent output.

FAQ's of 100 M Plasma Cutting Machine:

Q: How does the ignition mode work on the 100 M Plasma Cutting Machine?

A: The 100 M Plasma Cutting Machine offers both contact and non-contact ignition modes. Contact ignition is suitable for standard cutting tasks, while non-contact ignition is ideal for reducing wear on the torch and handling sensitive or coated materials.

Q: What materials can be cut with this plasma cutter, and what is the maximum cutting capacity?

A: This machine is engineered to cut steel and aluminium, supporting a maximum cutting capacity of 100 mm. Its high arc current and efficient design enable precise, clean cuts across these industrial metals.

Q: When should I use manual versus automatic control mode?

A: Use manual mode when you need direct control for intricate or custom cutting tasks. The automatic mode is optimal for repetitive or large-scale cuts, ensuring consistent results and faster job completion.

Q: Where can this plasma cutter be used safely?

A: The 100 M Plasma Cutting Machine is well-suited for industrial environments where protection class IP21S is adequate. It operates efficiently in temperatures ranging from -10C to +40C, making it ideal for most Indian industrial facilities.

Q: What processes ensure high efficiency and safety during operation?

A: The machine achieves 85% efficiency with air cooling and a stable power supply. Safety is reinforced by its insulation grade F, earth clamp, regulator, and low-noise output. The included protection class minimizes risks in dusty or humid workspaces.

Q: How do I benefit from the digital meter display?

A: The digital meter display provides real-time data on cutting parameters, allowing rapid adjustments for optimal performance. This enhances accuracy and helps reduce material wastage during operation.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Plasma Cutting Machine' category

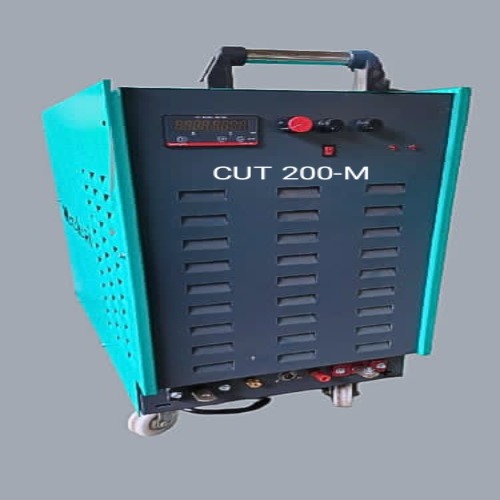

200 M Plasma Cutting Machine Price : 95000.0 INR/Unit Minimum Order Quantity : 1 Weight : 45 kg Frequency : 50/60 Hz Insulation Grade : F Dimension (L*W*H) : 650 x 320 x 560 mm Material : Mild Steel/Aluminium/Stainless Steel Power : 25 kVA Pulse Frequency : Variable Cooling Method : Air Cooled Voltage : 415 V Function : Precision Plasma Cutting Usage : Metal Cutting Rod Diameter : Up to 16 mm Motor Type : Induction Motor Input Current : 35 A Output Current : 30200 A Arc Current : 200 A Efficiency : 85% Welding Area : 200 mm (max cutting thickness may depend on material) Type : Plasma Cutting Machine Condition : New
